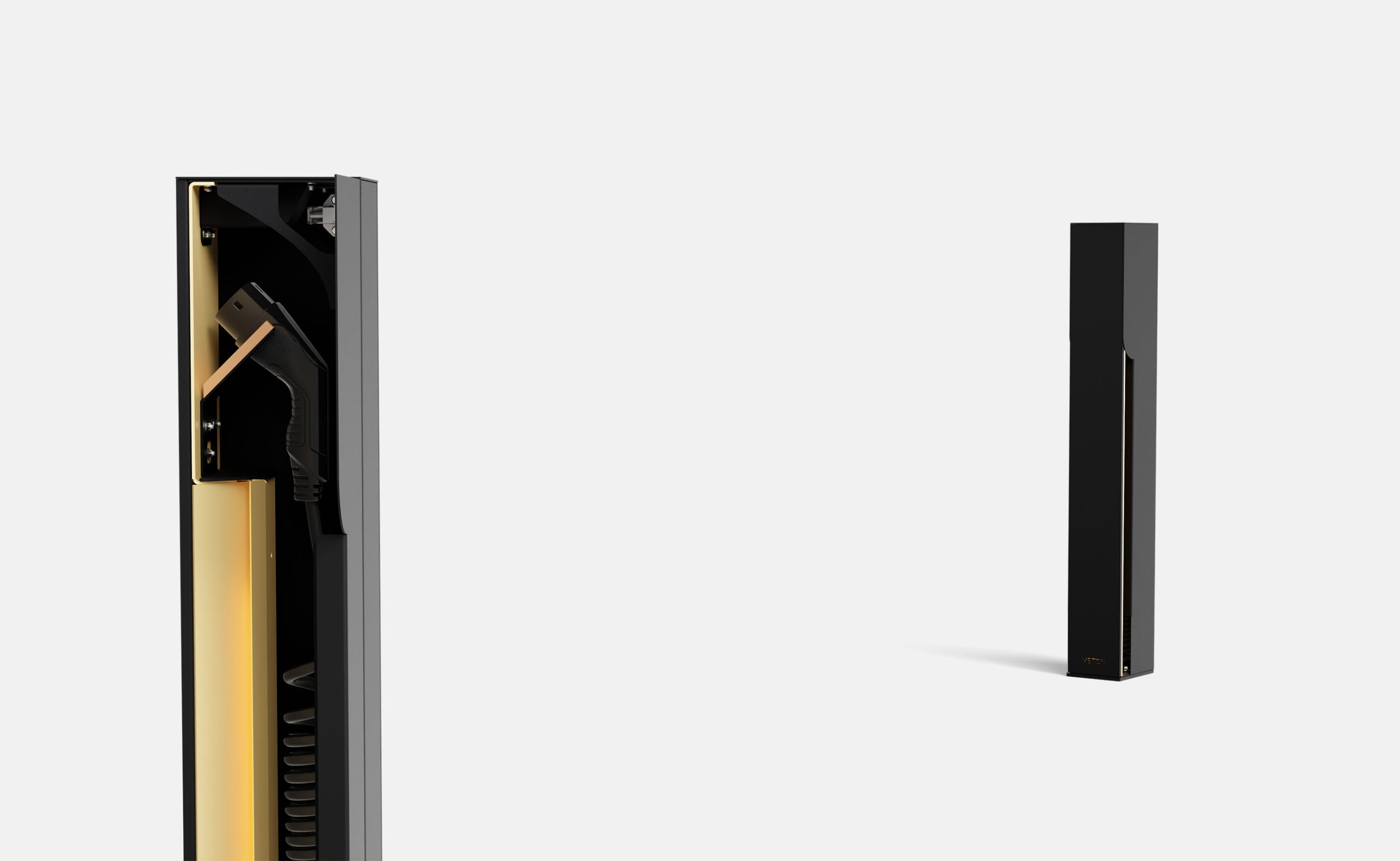

Meet Veton One, our elegant, smart EV charging point for residences and businesses with a stunningly modern yet contemporary design. One merges aesthetics and technology in a sleek design. Refined details, warm lighting and premium materials make this charging station an elegant icon in any setting.

What is included with One and what still needs to be provided?

Per One, in addition to the housing and charging components described above, the following are supplied as standard: a charging cable, an integrated RFID reader, a distribution block for connecting power and signal cables to the charging cable and RFID reader, ensuring a clear and simple installation, a Type A residual current circuit breaker. What still needs to be provided? Depending on the type of charging installation, the following must be supplied: 5G 4mm² or 6mm² power cable, CAT 7 SFTP data cable with 7 conductors.

One

Name: One
Brand: Veton

Overview Specifications Configure

Designed with an eye for detail.

One merges aesthetics and technology in a sleek design. Refined details, warm lighting and premium materials make this charging station an elegant icon in any setting.

An elegant charging solution.

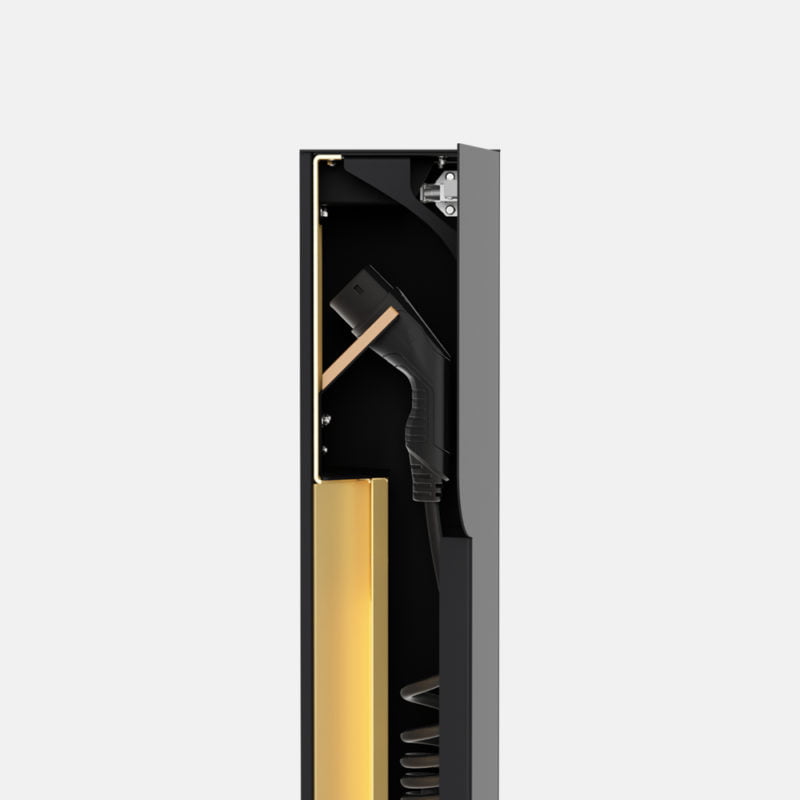

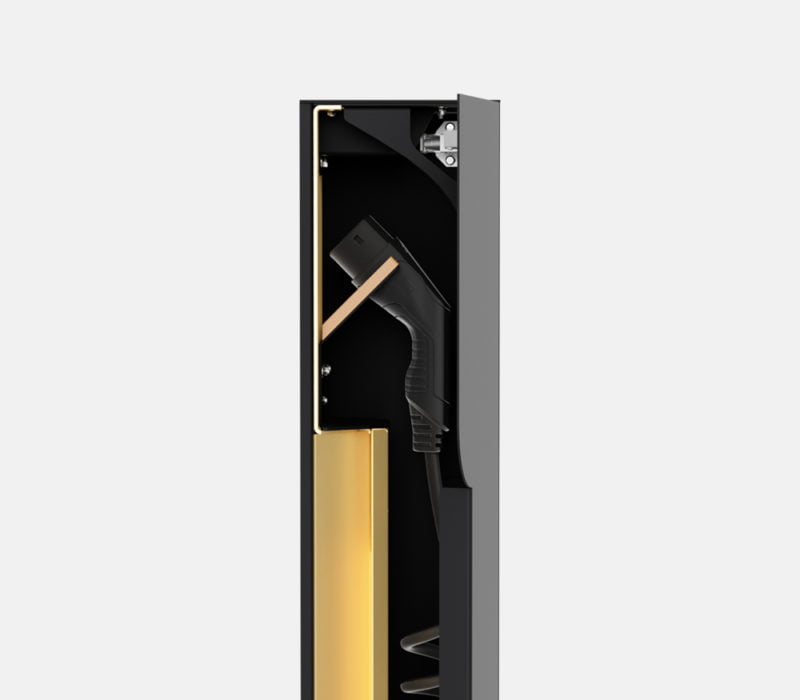

One is our iconic model, uniting design and everyday convenience. The integrated cable disappears behind steel doors, while ISO15118 makes it ready for plug & charge and bidirectional charging, ensuring effortless use. Fully compatible with all EU vehicles (Type 2).

Customize my charger

A splash of color.

Available in four colors: Imperial Black, Cotton White, Midnight Blue and Medusa Green.

Pick a color

Imperial Black(RAL 9005)

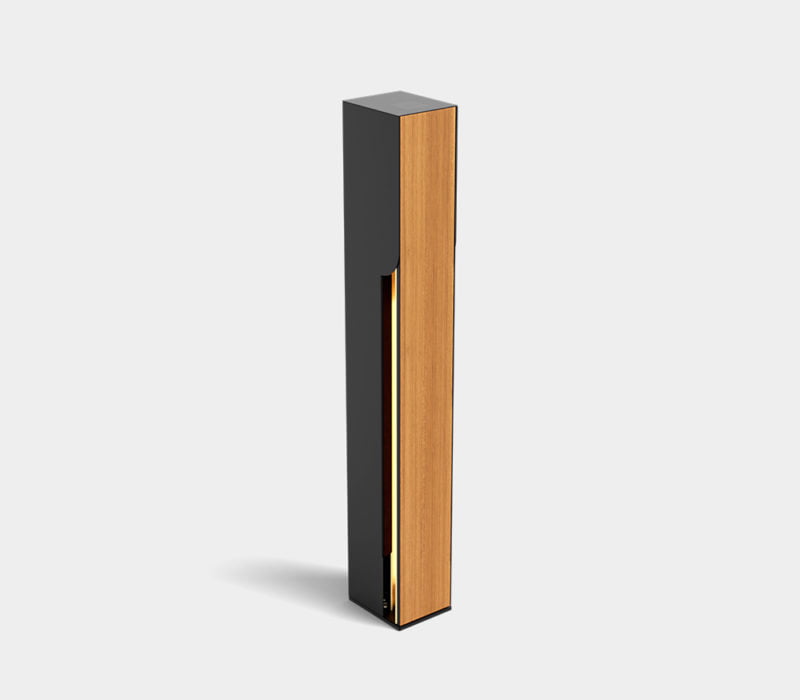

Natural elegance.

Add a touch of luxury: choose teak, natural stone or marble for the front plate and enrich the elegant design with natural accents.

Pick a material

Connectivity.

RFID is included as standard. Thanks to OCPP compatibility and integration with home automation and EMS platforms, One is highly versatile and ready for professional management and billing (via EV charging platforms).

Smart control.

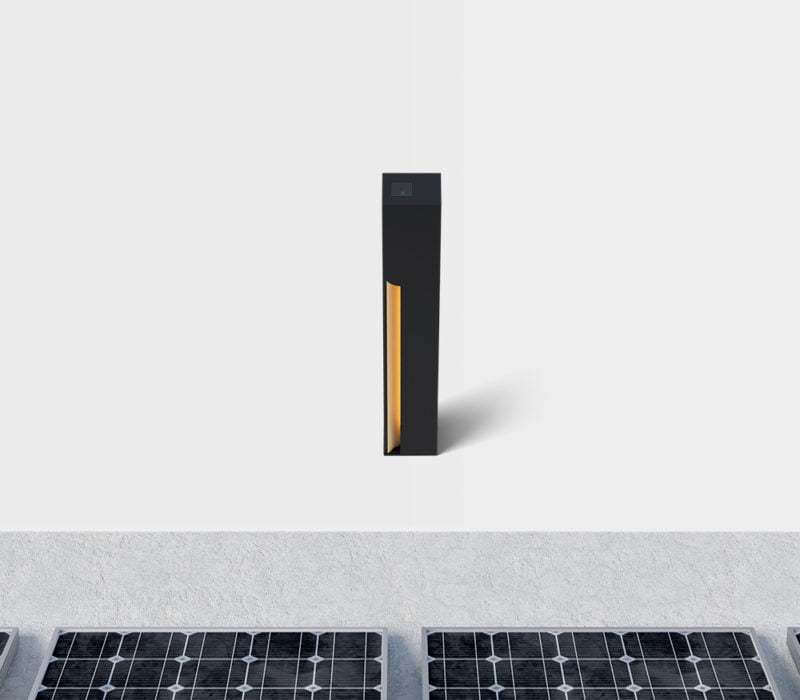

Charge intelligently with One: integrate with solar panels, batteries, dynamic load balancing and tariffs. Fully compatible with KNX, Crestron, Loxone, Qbus and other EMS via Modbus, MQTT or REST API.

More information

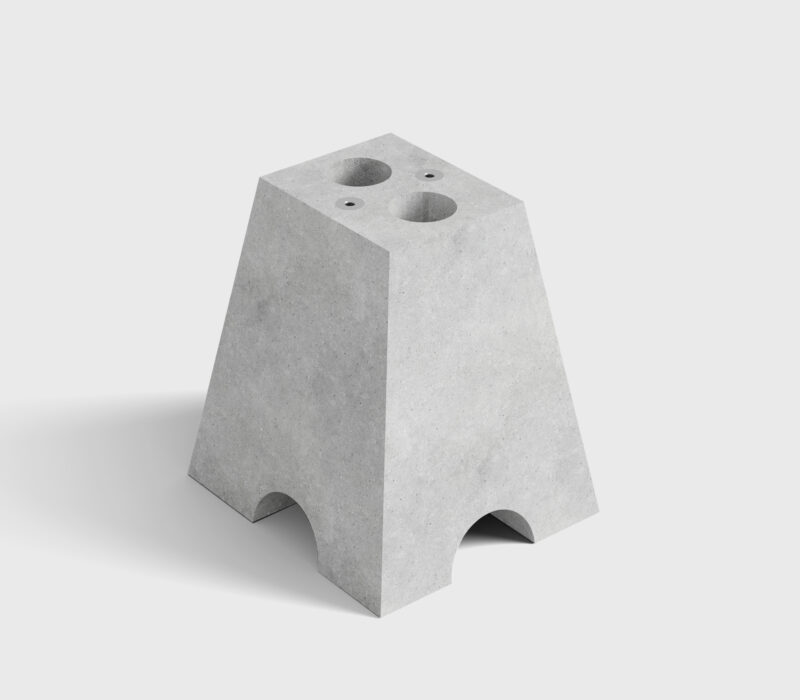

Concrete base.

The concrete base simplifies installation significantly with integrated mounting points and cable ducts.

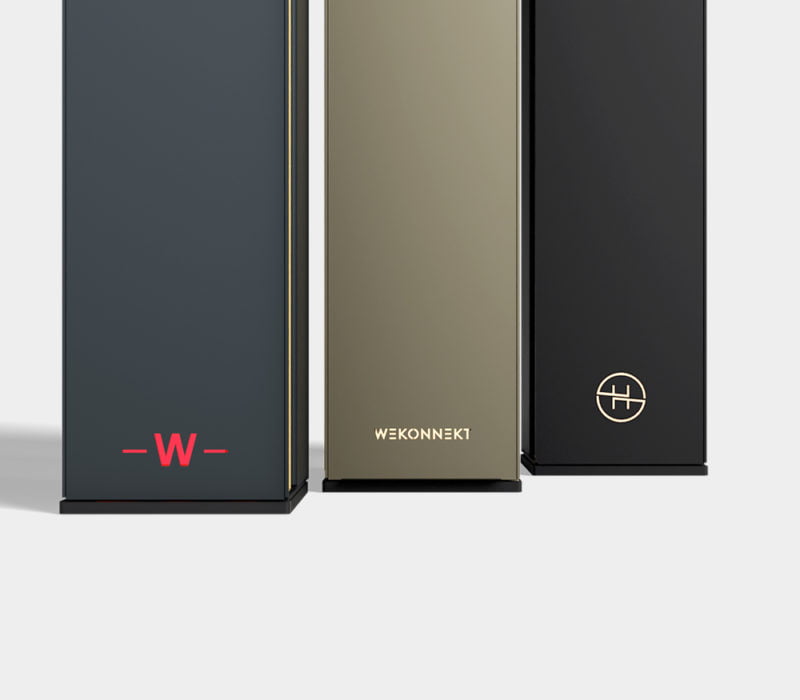

Brand it your way.

Personalize One with a laser-cut logo in the front plate, subtly highlighted by LED. Unique, stylish and instantly recognizable.

Customize my charger

How we keep fit.

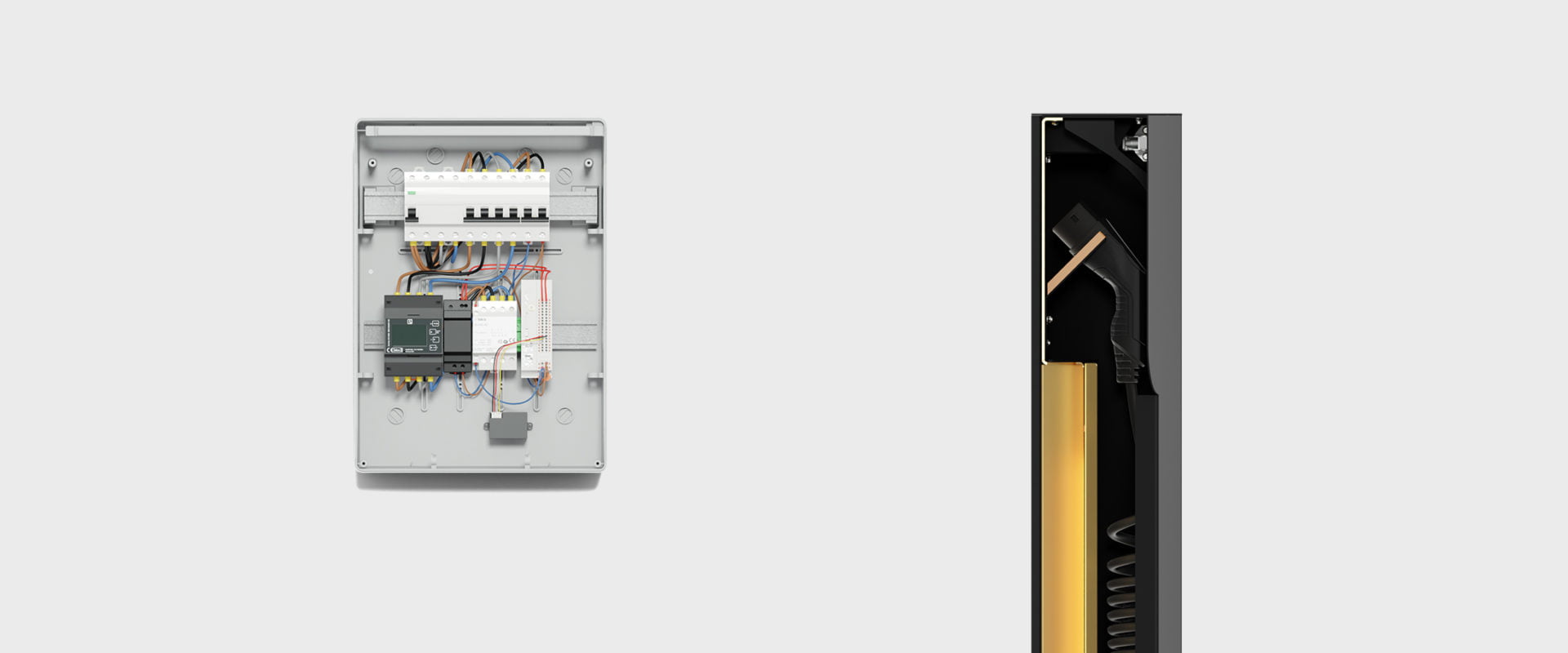

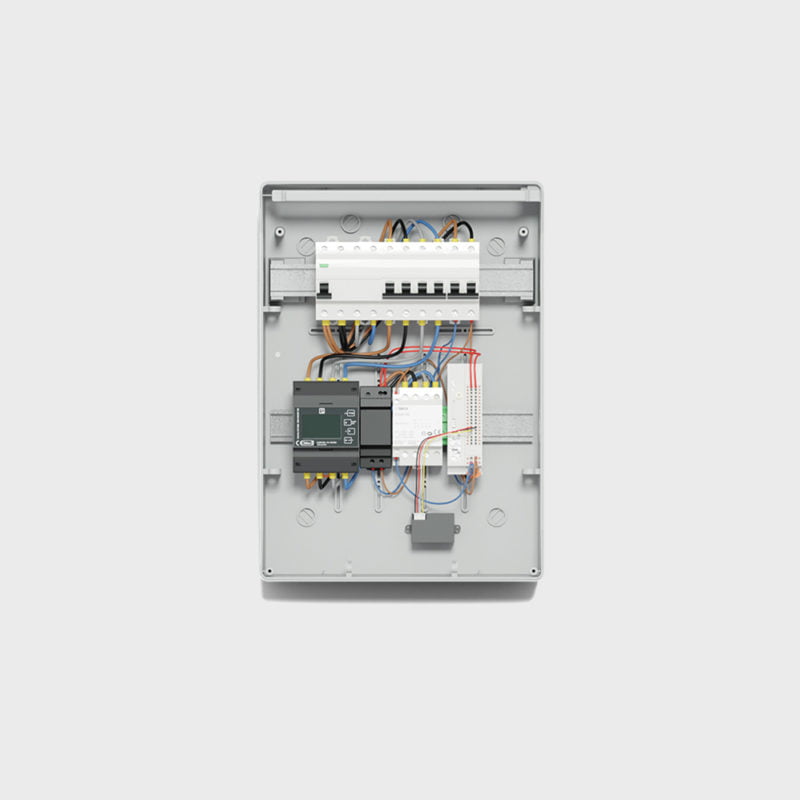

Veton® uses a separate cabinet that houses the charging electronics and is installed indoors. Per charging point, the cabinet is equipped as standard with: a residual current circuit breaker, MID-certified meter, 6mA DC residual current monitoring module, power supply, Phoenix Contact CHARX controller, contactor, and grounding terminal. The cabinet is supplied in the size 450 × 315 × 155 mm (for a single charging point).

This setup makes the charging stations more compact and aesthetically refined, while the electronics are optimally protected against heat, cold, water, and sunlight. The result: durable reliability and an extended lifespan.

For integration with energy management systems or OCPP platforms, the cabinet is simply connected to the internet via a UTP cable.

So what's included?

Per One, in addition to the housing and charging components described above, the following are supplied as standard:

a charging cable,
an integrated RFID reader,
a distribution block for connecting power and signal cables to the charging cable and RFID reader, ensuring a clear and simple installation,
a Type A residual current circuit breaker.

What still needs to be provided?

Depending on the type of charging installation, the following must be supplied:

5G 4mm² or 6mm² power cable,
CAT 7 SFTP data cable with 7 conductors.

Specifications.

Connectivity

Ethernet, MQTT, Modbus TCP, Modbus RTU, REST API

Optional 4G/2G connection

Charging specifications

Mode 3 / 3,7 - 13,5 kW

3 x 400V+N / 16A - 20A per fase

Overload protection

Dynamic load balancing

EV charging platforms

Connect with provider of choice

via OCPP

Energy monitoring

MID certified energy monitor

Calculation of transaction costs

Residual Current Detection

Built-in residual current protection

6mA DC / 30mA AC

Dimensions

1152 x 154 x 186 mm

H x W x D

Component housing

Integrated in utility closet

450 x 315 x 155 mm

Cable

5G 4mm2 + 7 x 0.34mm2

(E)XVB + SFTP
